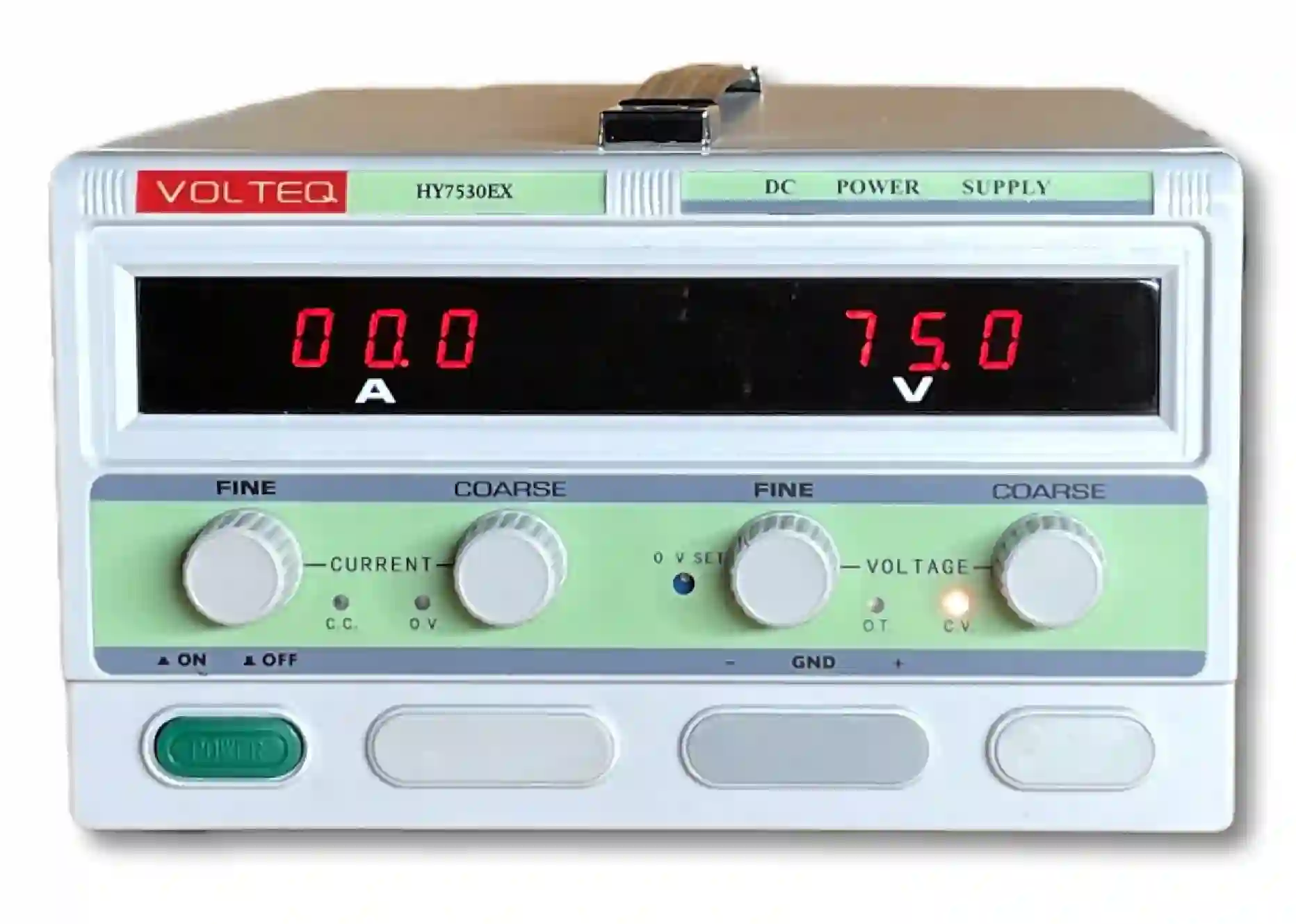

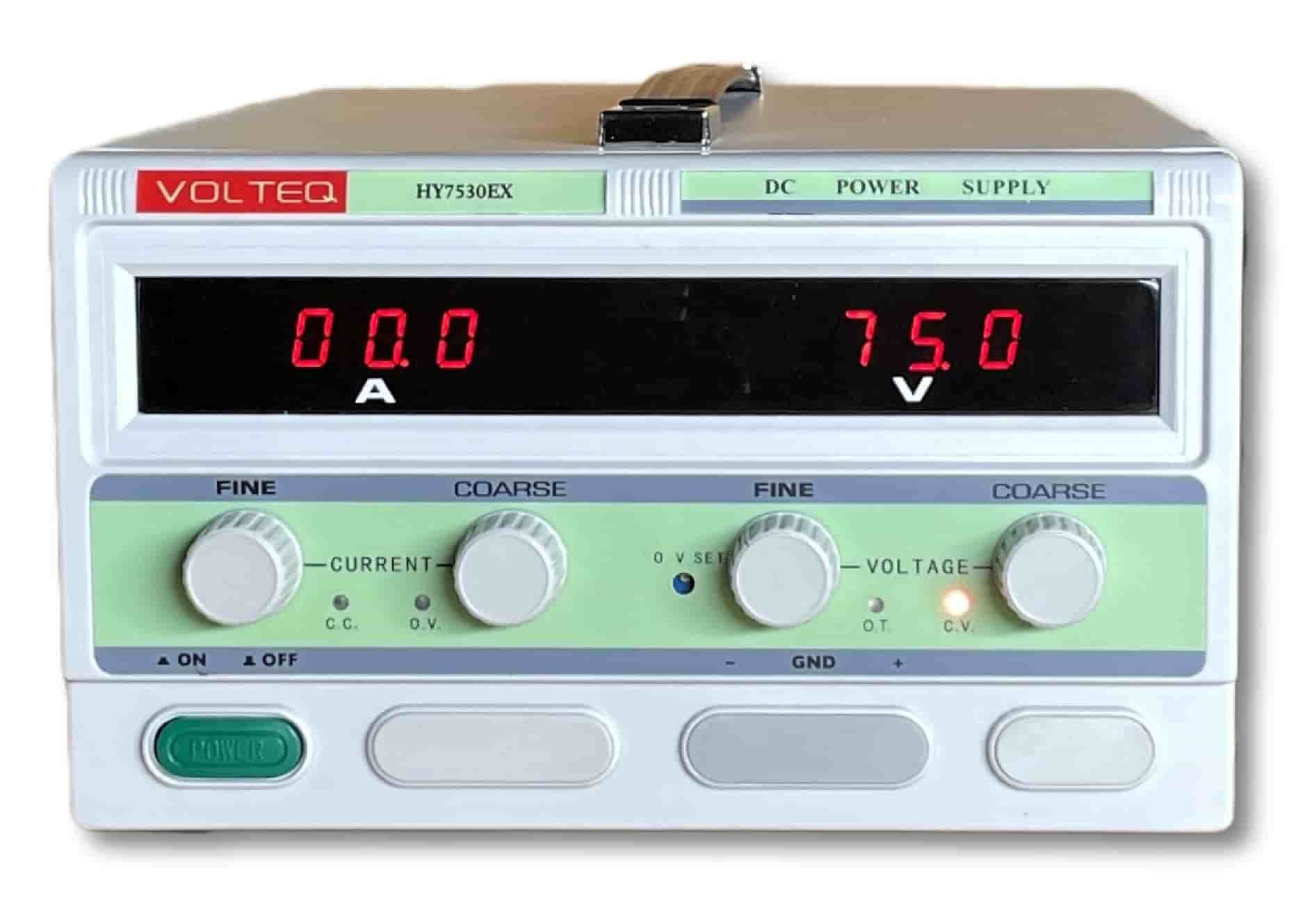

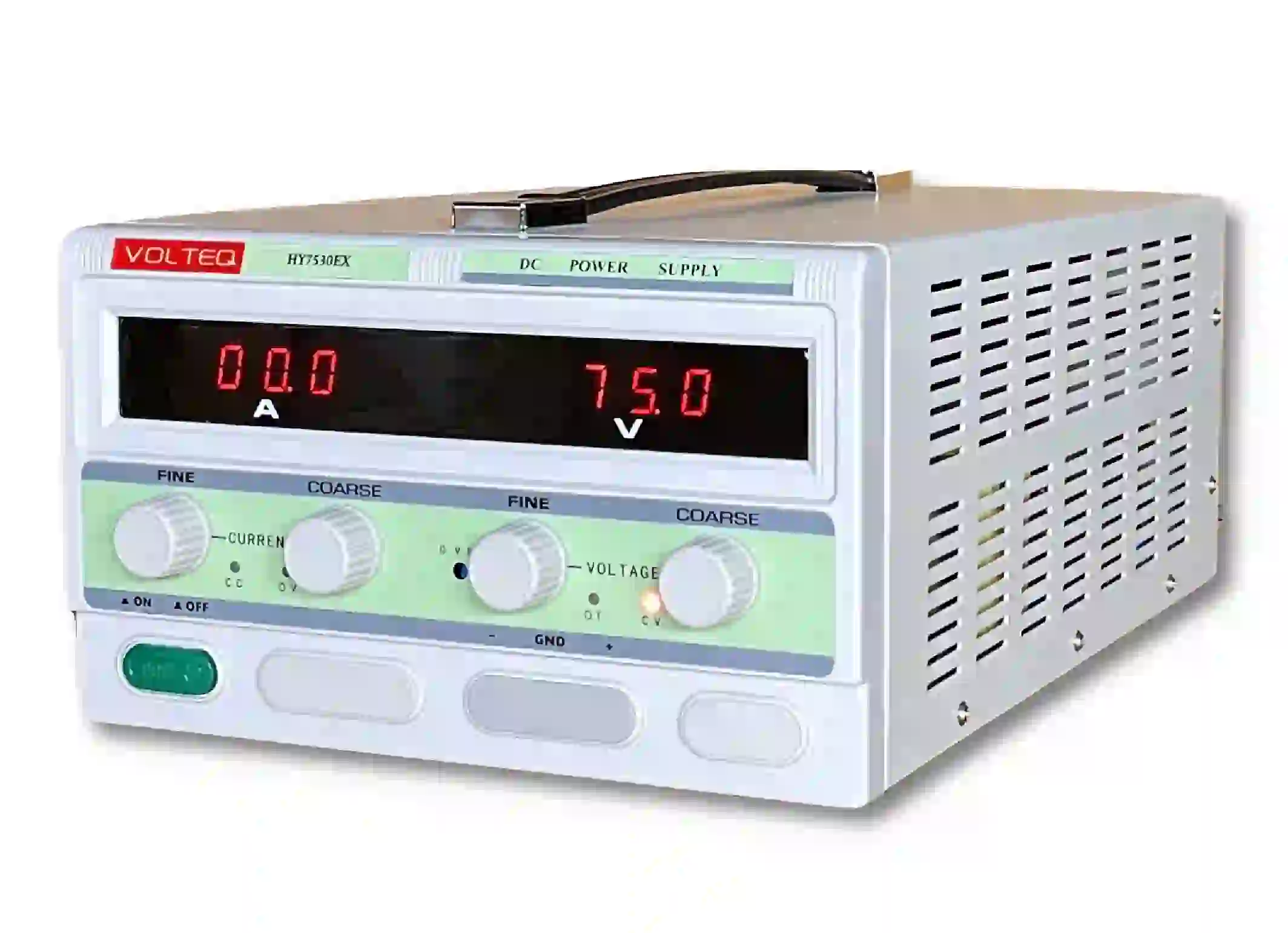

VOLTEQ HY7530EX is a variable current, variable voltage regulated switching DC power supply, with built-in over-voltage and over-current protection, ideal for battery charging, DC motors, anodizing and plating applications. HY7530EX is one of the most powerful DC power supply we carry, with the maximum DC power of 2250W. This high quality regulated power supply can be continuously adjustable at 0-75V DC and 0-30A. The unit comes with 2 LED displays, providing accurate and clearly visible readout for the voltage and current value. Due to the requirement for high current, this unit comes with NEMA plug and works off 220V -240V AC outlet, typically available in every household (e.g. dryers and stove tend to use 240V AC outlet due to high power requirement). Retails at $1000.
Features & Specifications:
- Two level of control for both current and voltage outputs: coarse and fine for ease of use
- Outputs: 0-75 V and 0-30 A
- Protection: over-voltage and over-current protection
- Input voltage: 220-240V AC
- Voltage Stabilization: <=0.2%
- Current Stabilization: <=0.5%
- Load Regulation: <=0.3%
- Ripple noise: CV <= 1%
- LCD reading accuracy: +/-1% +/-1 digit
- Environment: 0-40C, relative humidity < 90%
- Warranty: 1 year
